Abstract
Cube and its dual Octahedron exist in any multi-dimensional space; as shapes, they compose multi-shell clusters of octahedral symmetry (resulted by operations on maps) and crystal networks. A particular attention was given to clusters decorated with octahedra and dodecahedra, respectively.

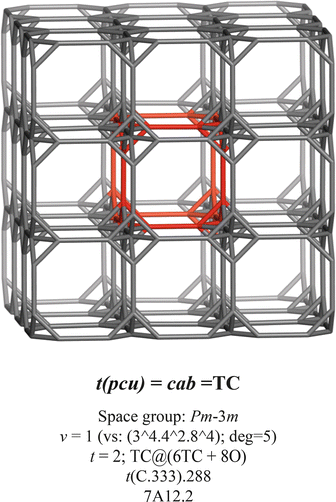

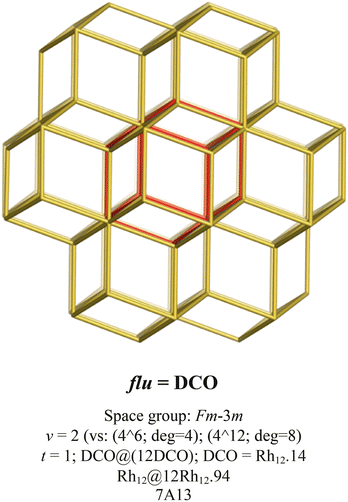

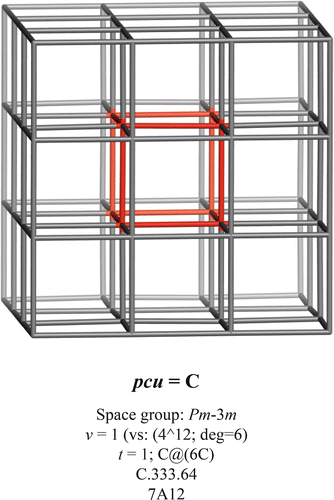

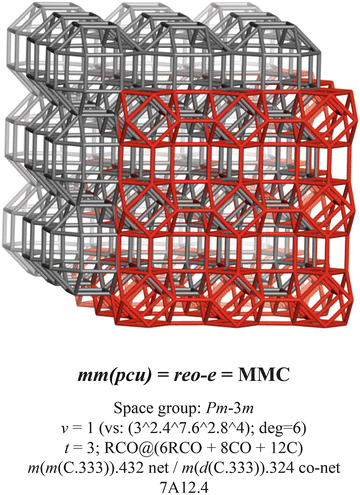

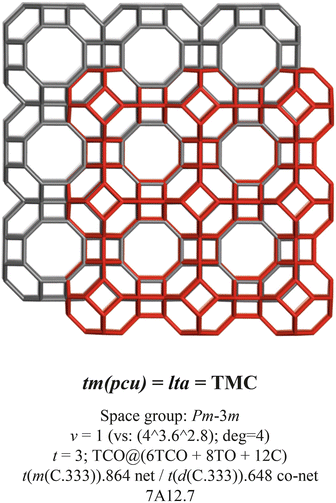

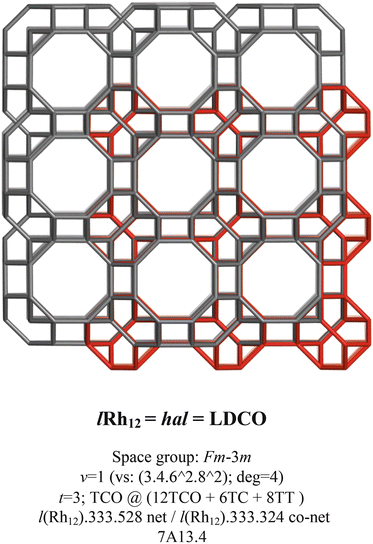

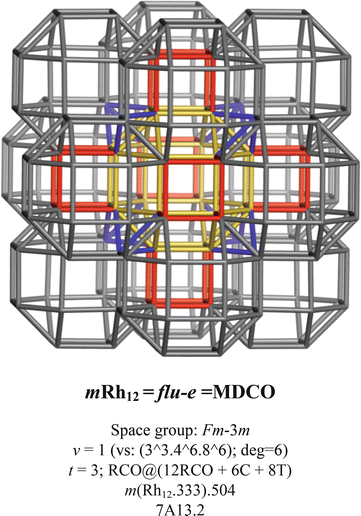

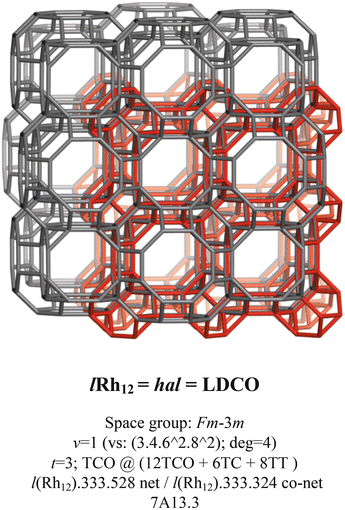

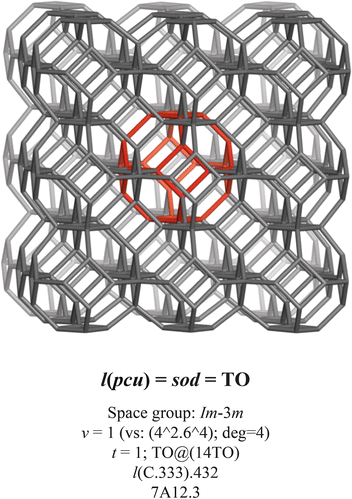

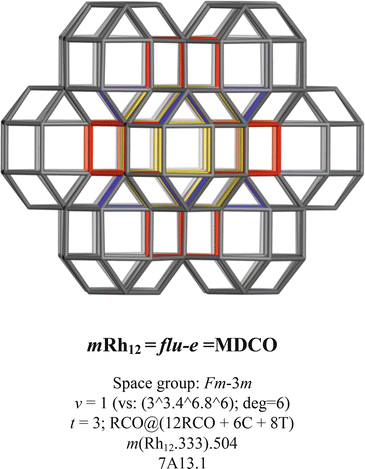

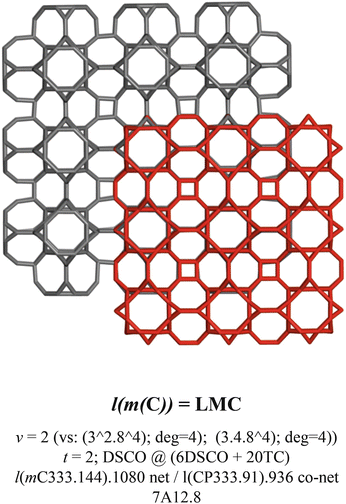

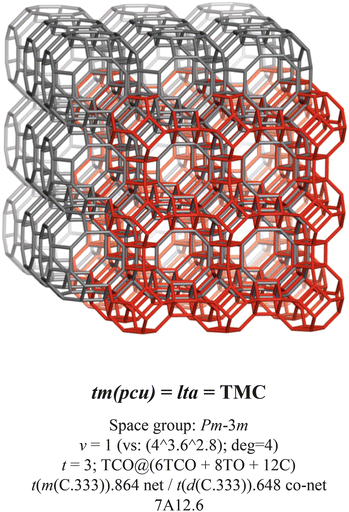

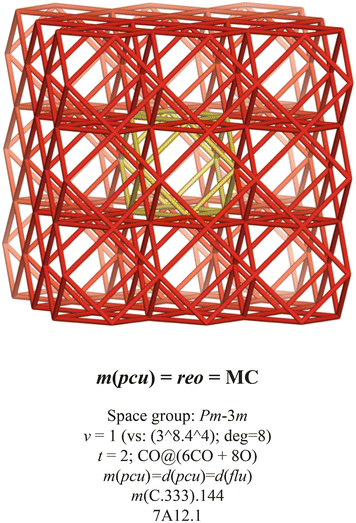

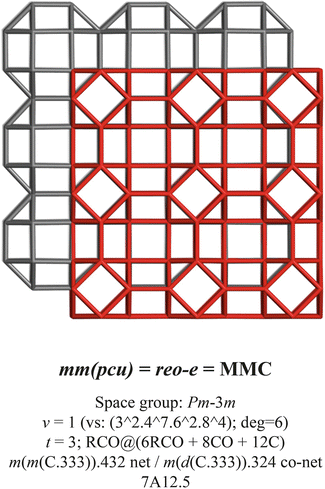

Cube is the only Platonic solid that can tessellate the 3D space. This chapter was focused on two space fillers: the cube C and the rhombic dodecahedron, Rh12 (i.e. d(mC).14, or dual of cuboctahedron) and to their networks, derived by map operations, like dual, medial, truncation or leapfrog. The clusters and networks were characterized by figure count, ring signature and centrality index. An atlas section illustrates the discussed multi-shell polyhedral clusters and triple periodic structures, respectively.
Access this chapter
Tax calculation will be finalised at checkout
Purchases are for personal use only
References
Coxeter HSM (1973) Regular polytopes, 3rd edn. Dover, New York
Diudea MV (2013) Quasicrystals: between spongy and full space filling. In: Diudea MV, Nagy CL (eds) Diamond and related nanostructures. Springer, Dordrecht, pp 335–385
Diudea MV, Ursu O (2003) Layer matrices and distance property descriptors. Indian J Chem A42(6):1283–1294
Gardner M (1984) The sixth book of mathematical games from scientific American. University of Chicago Press, Chicago
Goldberg M (1979) Convex polyhedral space-fillers of more than twelve faces. Geom Dedicata 8:491–500
Grünbaum B, Shephard GC (1980) Tilings with congruent tiles. Bull Am Math Soc 3:951–973
Johnson NW (1966) Convex solids with regular faces. Can J Math 18:169–200
Nagy CL, Diudea MV (2009) Nano studio software program. Babes-Bolyai University, Cluj
Papacostea C (1930–1935) P1aton. Opere, 1–11 (Roum. translation), Casa Şcoalelor, Bucureşti
Parvan-Moldovan A, Diudea MV (2015) Cell@cell higher dimensional structures. Stud Univ Babes-Bolyai Chem 60(2):379–388
Schulte E (2014) Polyhedra, complexes, nets and symmetry. Acta Cryst A70:203–216
Steinhaus H (1999) Mathematical snapshots, 3rd edn. Dover, New York
Taylor AE (1928) A commentary on Plato’s Timaeus. Clarendon, Oxford
Author information
Authors and Affiliations
Chapter 7 Atlas: Octahedral Clusters
Chapter 7 Atlas: Octahedral Clusters
|
|
|

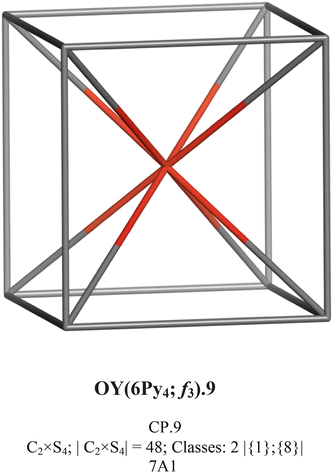

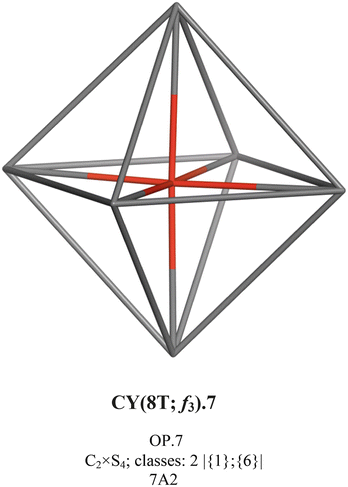

C.8 | O.6 | OP.7 |
|
|
|
O.6 | C.8 | CP.9 |
|
|
|
C.8 | A4.8 | CP.9 |
|
|
|

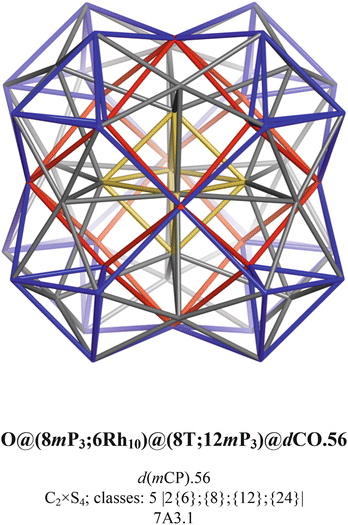

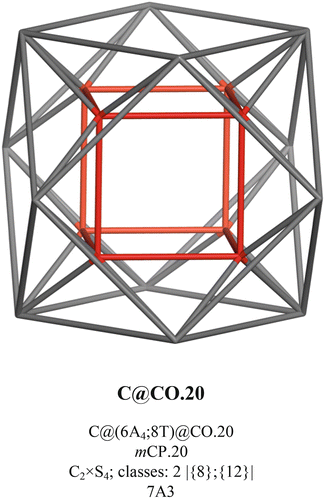

mA4.16 | mCP.20 | d(mCP).56_4 |
|
|
|

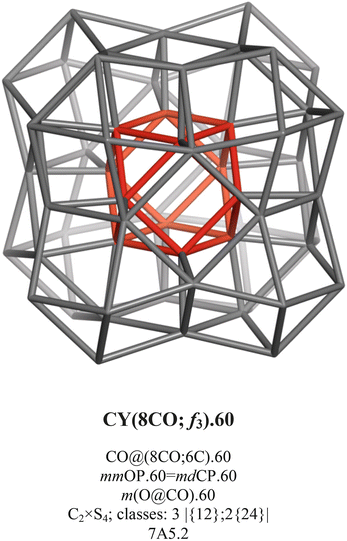

mA4.16 | mCP.20 | m(mCP).60_4 |
|
|
|

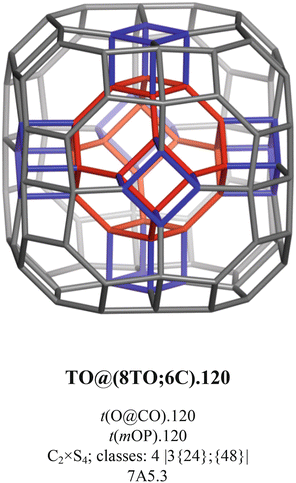

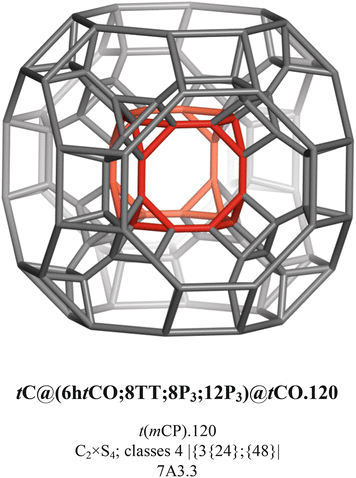

TC.24 | mCP.20 | t(mCP).120_4 |
|
|
|

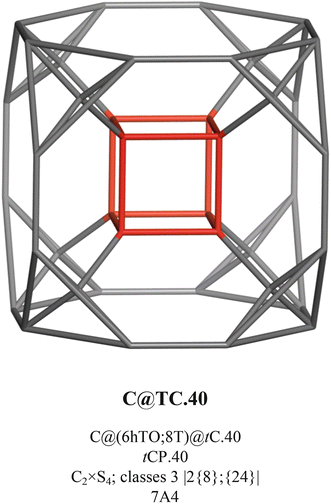

C.8 | TO.24 | CP.9 |
|
|
|
O.6 | C.8 | CP.9 |
|
|
|

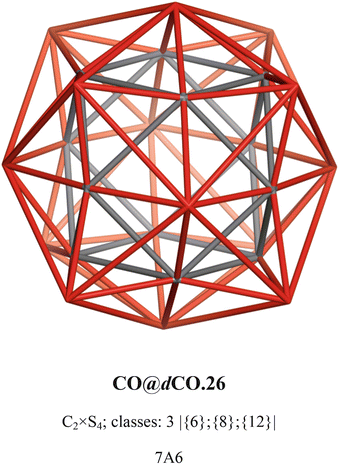

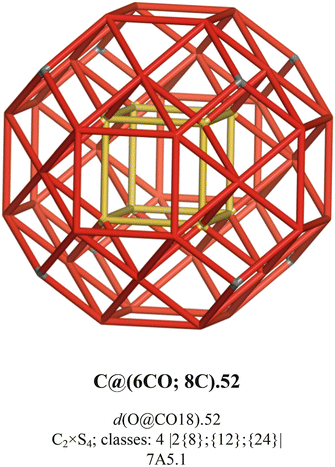

C.8 | CO.12 | O@CO.18 |
|
|
|
C8 | CO.12 | O@CO.18 |
|
|
|

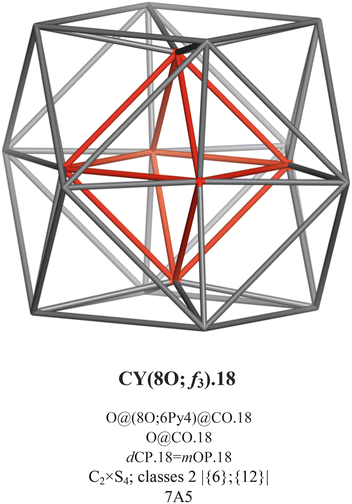

O.6 | TO.24 | O@CO.18=mOP.18 |
|
|
|
O@3O.15 | dCO@CO.26 | COP@dCO.27 |
|
|
|

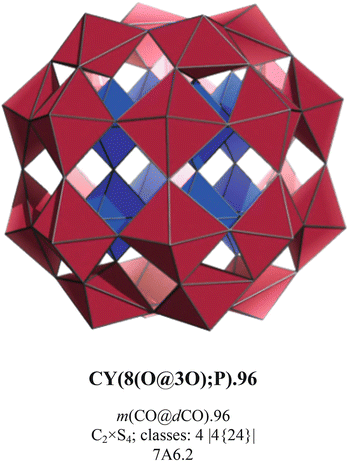

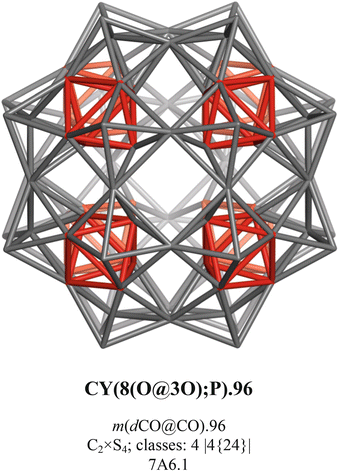

O@3O.15 | CO@dCO.26 | m(dCO@CO).96_4 |
|
|
|
CO.12 | O@3O.15 | CO@dCO.26 |
|
|
|
O@3O.15 | dCO@COP.27 | CO@dCO.26 |
|
|
|

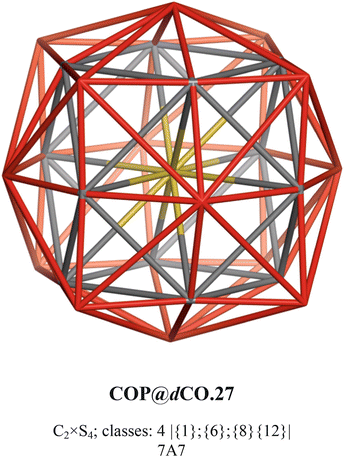

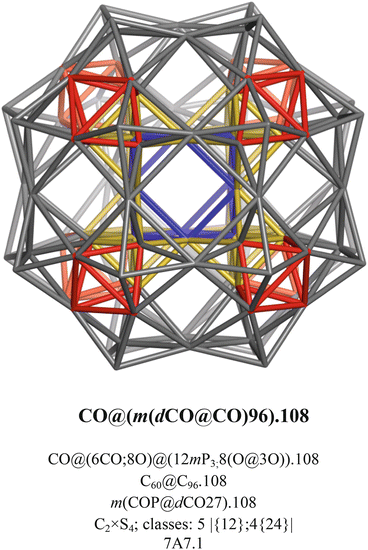

COP@dCO.27 P12@CO@dCO.27 | C108X.60 | m(CO@dCO27).96 |
|
|
|

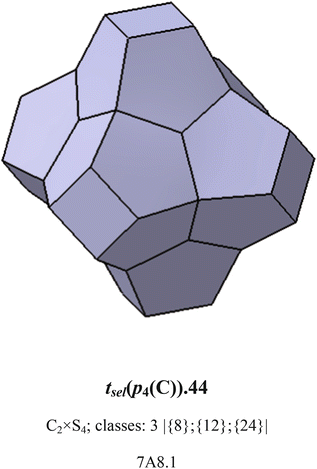

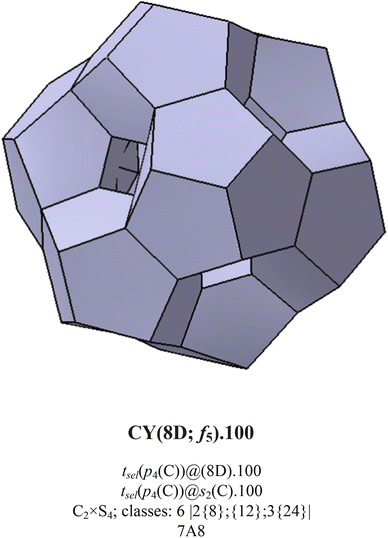

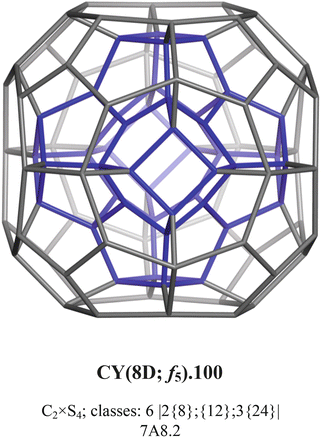

t sel (P4(C)).44 | s 2(C).56 | t sel (P4(C))@(8D).100 |
|
|
|
D.20 | t sel (P4(C)).44 | t sel (P4(C))@(8D).100 |
|
|
|
t sel (P4(C))@(8D).100_2 | t sel (P4(C))@(8D).100_3 | t sel (P4(C))@(8D).100_4 |
|
|
|

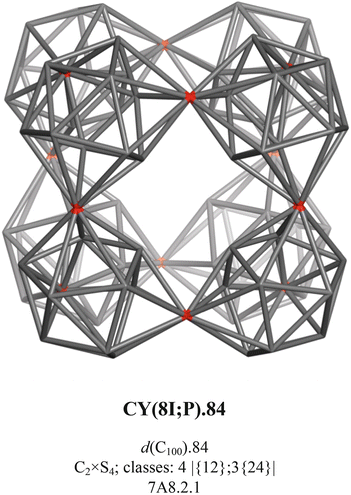

d(C100).84_2 | d(C100).84_3 | t sel (P4(C))@(8D).100_4 |
|
|
|

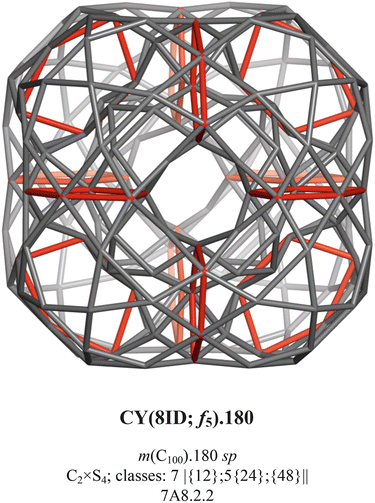

m(C100).180_2 | m(C100).180_3 | t sel (P4(C))@(8D).100 |
|
|
|

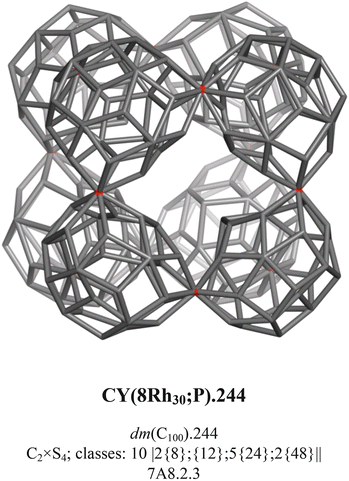

dm(C100).244_2 | dm(C100).244_3 | Rh30.32 |
|
|
|

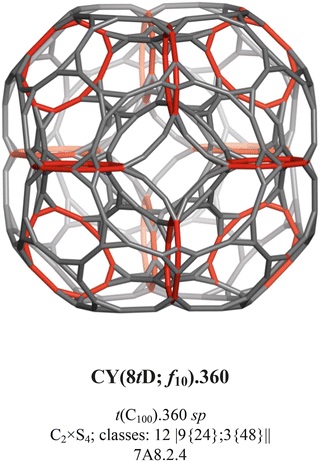

t(C100).360_2 | t(C100).360_3 | t(C100).360_4 |
|
|
|

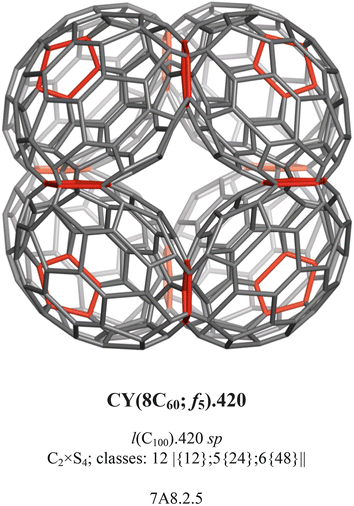

l(C100).420_2 | l(C100).420_3 | l(C100).420_4 |
|
|
|

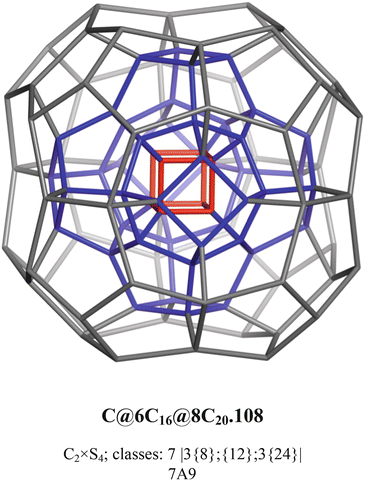

C16 (8(4.5.5).8(5.5.5)) | C.20 | t sel (P4(C))@(8D).100_4 |
|
|
|

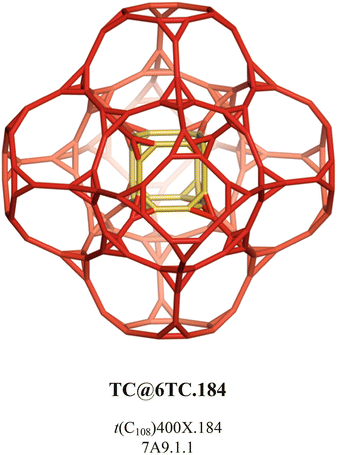

t(C108)X.184 | t(C100).360 | C108 |
|
|
|

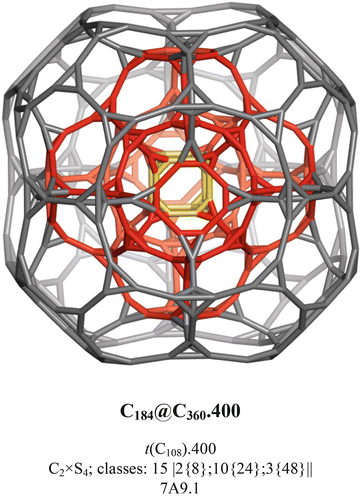

C108 | C400 | C184 |
|
|
|

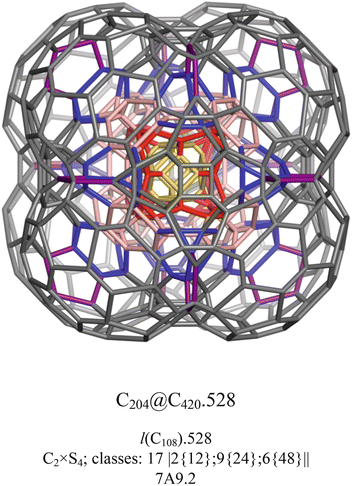

l(C108).528X.204 | l(C100).420_4 | l(C108).528_4 |
|
|
|

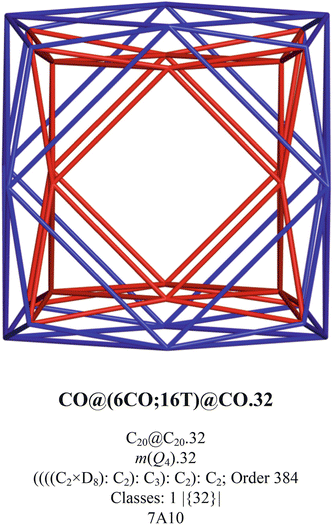

m(Q 4)X.20 | m(Q 4)X.20 | m(Q 4).32 |
|
|
|

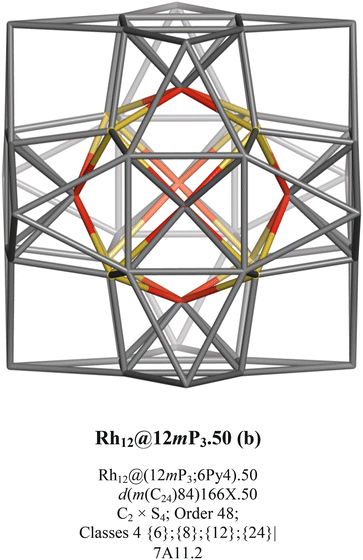

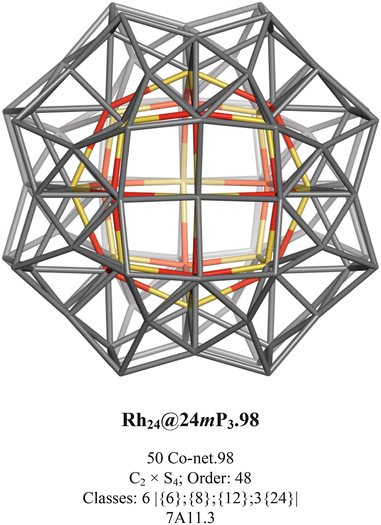

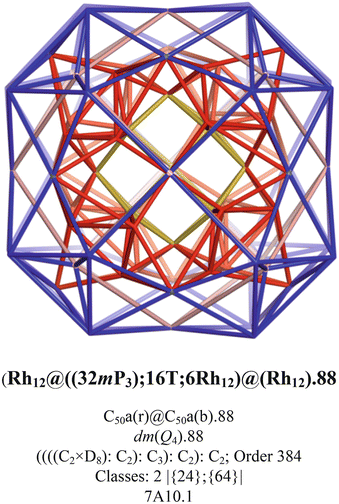

dm(Q 4)X.50a (r) Rh12@(12mP3;8T).50 C2 × S4; Order 48; |{6};{8};{12};{24}| | dm(Q 4)X.50a (b) Rh12@(12mP3;8T).50 C2 × S4; Order 48; |{6};{8};{12};{24}| | dm(Q 4).88_3 |
|
|
|

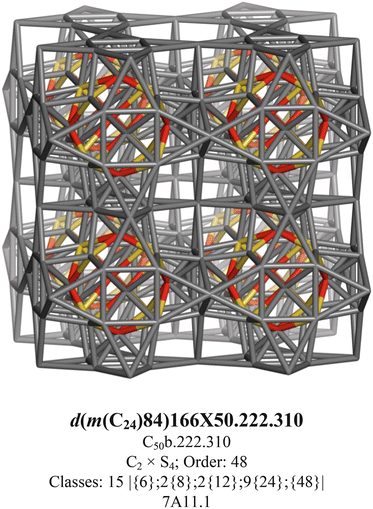

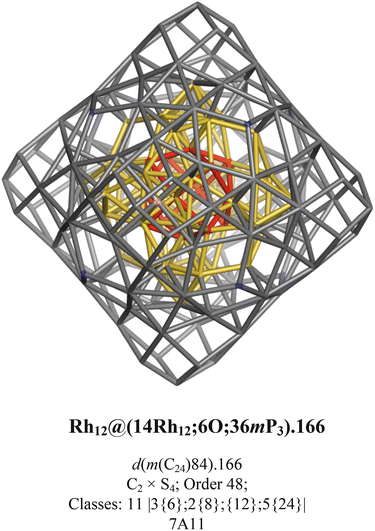

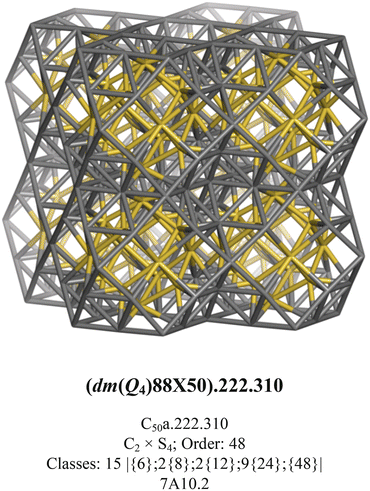

d(m(Q 4)88)X.50 C50a | (d(mQ 4)88)X50.222.310 C50a.222.310 | d(m(C24)84)166X50.222.310 C50b.222.310 |
|
|
|
