Problems

9.1.1 Magnetic Dipoles and Magnetization

9.1
Application: Magnetic Dipole. A small circular loop of radius a [m] and a small, square loop, a × a [m²] are given.
1. (a)
  Calculate the magnetic dipole moment of the circular loop.
2. (b)
  Justify based on physical considerations the following statement: “At large distances, the magnetic dipole of the square loop is the same as that of a circular loop of identical area.”
3. (c)
  Calculate the magnetic flux density at a general point in space due to each loop for the conditions in (b).
9.2
Magnetic Dipole. A loop of radius a [m] carries a current I [A]. A second, small loop of radius b [m] is placed at point P ₁ (on the axis of the first loop, at height h [m] above the loop) or at point P ₂ (at a horizontal distance h [m], on the plane of the first loop) so that the planes of the two loops are parallel in either case (Figure 9.59). In both cases, h ≫ b, a > b and h ≫ a. Calculate the total flux through the small loop produced by the large loop when:
1. (a)
  The small loop is at point P ₁.
2. (b)
  The small loop is at point P ₂.
Figure 9.59
9.3
Magnetization. A very long cylindrical magnet has constant magnetization M [A/m], directed as in Figure 9.60. A solenoid made of thin wire is wound tightly around the magnet, with n turns per unit length of the coil. What must be the current (magnitude and direction) in the coil to cancel the magnetization of the magnet?

Figure 9.60
9.4
Application: Magnetization and Magnetic Field in a Permanent Magnet. A very long cylindrical magnet has magnetization M [A/m] as shown in Figure 9.60. The magnet is made of a material with permittivity μ [H/m]. Calculate the magnetic field intensity inside the magnet.
9.5
Flux Density in a Magnet. For a permanent magnet, the flux density inside the magnet can be written as B _i = μ _i H _i. Show that in this case, the permeability must have a negative sign. Explain why this must be so and the practical meaning of the relation.

9.1.2 Magnetic Interface Conditions

9.6
Magnetic Interface Conditions. A magnetic field intensity H is given at the interface between materials (1) and (2) as shown in Figure 9.61. Calculate the direction and magnitude of the magnetic flux density in materials (2) and (3). Assume there are no surface currents on the interfaces.

Figure 9.61
9.7
Interface Conditions for Ferromagnetic Media. The relative permeability of a large, flat piece of ferromagnetic material is 100. If the magnetic field intensity in the iron must be at 60° to the surface, what must be the direction of the magnetic field intensity at the surface of the iron piece in air? Assume there are no currents on the interfaces.
9.8

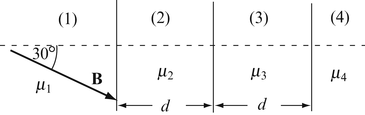

Interface Conditions and Flux Density. A two-layer magnetic sheet is made as shown in Figure 9.62. Each sheet is d [m] thick. Permeabilities are μ ₁ = μ ₀, μ ₂ = 200μ ₀, μ ₃ = 50μ ₀, and μ ₄ = μ ₀. A magnetic flux density in material (1) is given at 30° to the normal and of magnitude B = 0.01 T. Calculate the magnetic flux density (magnitude and direction) in materials (2), (3) and (4).

Figure 9.62

9.1.3 Inductance

9.9
Application: Self- and Mutual Inductances of Coils. A coil is wound uniformly in the form of a torus (see Figure 9.63). A long solenoid, of radius a < b [m] and n turns per unit length, is inserted in the central hole of the torus. Calculate:
1. (a)
  The self-inductance of the toroidal coil.
2. (b)
  The self-inductance per unit length of the solenoid.
3. (c)
  The mutual inductance between the toroidal coil and the solenoid.
Figure 9.63
9.10
Application: Self- and Mutual Inductances of Coils. Three coils are wound on a toroidal core with properties and dimensions as shown in Figure 9.64. Assume b – a ≪ a and b > a and calculate:
1. (a)
  The self-inductance of coils (1), (2), and (3).
2. (b)
  The mutual inductances between coils (1) and (2), between coils (2) and (3), and between coils (1) and (3).
  Figure 9.64
9.11
Application: Self-inductance of Long Solenoid. A long solenoid is wound on a hollow cylinder made of iron. Dimensions are given in Figure 9.65. Permeability of iron is μ ₁ > μ ₀ and that of free space is μ ₀ [H/m]. The solenoid carries a current I [A] and has n turns per unit length. Calculate the self-inductance per unit length of the solenoid.
Figure 9.65
9.12

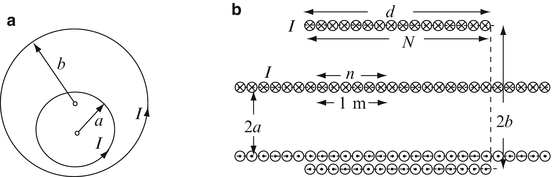

Inductance of a Double Cylinder. A thin sheet of copper is bent into an infinitely long double cylinder as shown in cross section in Figure 9.66. Calculate the inductance per unit length of the double cylinder. For purposes of calculation, assume d → 0.
Figure 9.66
9.13
Mutual Inductance Between Wire and Solenoid. A very long wire (infinite for practical purposes) is located at a distance d [m] from the center of an infinite solenoid (Figure 9.67). The solenoid has a radius b [m] (b < d) and n turns per unit length. The solenoid and the wire are at 90° to each other, as shown. Calculate the mutual inductance between solenoid and wire.

Figure 9.67
9.14
Mutual Inductance Between Coil and Solenoid. A very long (infinite) solenoid with N turns per unit length and radius a [m] carries a current I = I ₀ [A]. A coil with two turns and radius b [m] (b > a) is located as shown in Figure 9.68. The coil and solenoid do not touch.
1. (a)
  Calculate the mutual inductance between the coil and solenoid.
2. (b)

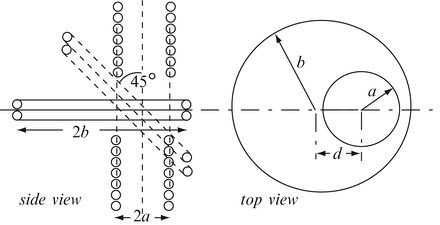

  Suppose the coil is now twisted so that it makes a 45° angle with the axis of the solenoid. What is now the mutual inductance between the coil and solenoid? (The solenoid is entirely enclosed within the coil.)
Figure 9.68
9.15

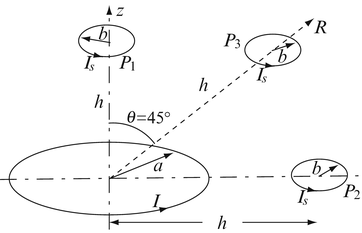

Application: Mutual Inductance Between Loops. The geometry and conditions in Problem 9.2 are given. Calculate:
1. (a)
  The mutual inductances L ₁₂ and L ₂₁ when the small loop is at point P ₁ in Figure 9.59 and parallel to the large loop. Write the necessary assumptions.
2. (b)
  The mutual inductances L ₁₂ and L ₂₁ when the small loop is at point P ₂ in Figure 9.59 and parallel to the large loop. Write the necessary assumptions.
3. (c)
  Based on the calculation in (a), does the relation L ₁₂ = L ₂₁ hold? Explain.
9.16
Inductors in Series and Parallel. Three identical inductors are connected as shown in Figure 9.69. The inductors experience no mutual inductance.
1. (a)
  Calculate the total inductance for the series connection in Figure 9.69a.
2. (b)
  Calculate the total inductance for the parallel connection in Figure 9.69b.
3. (c)
  Calculate the total inductance for the connection in Figure 9.69c.
Figure 9.69
9.17
Application: Inductance of Coaxial Cables. A coaxial cable is made of an inner shell of radius b [m] and an outer, concentric shell of radius a [m], separated by a dielectric with permeability μ ₀ [H/m]. Calculate the inductance per unit length of the coaxial cable. Assume the shells are very thin.
9.18
Application: Internal and External Inductances. A coaxial cable is made of a solid inner conductor of radius b [m] and a concentric, outer solid conductor of inner radius a [m] and outer radius c [m]. The conductors are separated by a material of permeability μ ₀ [H/m]. Assume any current in the conductors is uniformly distributed throughout the conductor’s cross-sectional area and the permeability of the conductors is μ ₀ [m]. Calculate:
1. (a)
  The internal inductance per unit length due to the inner conductor.
2. (b)
  The internal inductance per unit length due to the outer conductor.
3. (c)
  The external inductance per unit length of the cable.
4. (d)
  The total inductance per unit length of the cable. Compare with the result in Problem 9.17.
9.19
Application: Inductance Per Unit Length of Cables. Two two-wire cables carry a current I ₁ [A] and I ₂ [A] as shown in Figure 9.70. Both cables can be assumed to be very long (infinite) and both are placed flat on a plane. Calculate:
1. (a)
  The external self-inductance per unit length of each cable.
2. (b)
  The mutual inductance per unit length between the two cables.
Figure 9.70
9.20
Self- and Mutual Inductance in Printed Circuit Boards. The configuration shown in Figure 9.71 represents part of a printed circuit board (PCB). The two outer conductors represent the power supply traces and may be assumed to be long, whereas the loop in the center is part of the functional circuit and is small. The outer traces are of width 2t. The permeability of the PCB is μ₀ [H/m] and the dimensions are as follows: a = 25 mm, b = 20 mm, c = 4 mm, d = 6 mm, and t = 1 mm. Calculate:
1. (a)
  The external self-inductance per unit length of the outer circuit.
2. (b)
  The total self-inductance per unit length of the outer circuit.
3. (c)
  The mutual inductance between the loop and the external circuit. Neglect the thickness of the traces of the small loop for the purpose of this calculation.
Figure 9.71

9.1.4 Energy

9.21
Stored Energy in a System of Inductors. An infinite solenoid with n turns per unit length and radius a [m] carries a current I [A]. A shorter solenoid, of length d [m] and radius b [m], is placed over the first as shown in Figure 9.72a. The two solenoids do not actually touch. Figure 9.72b shows the relation of the two solenoids from an axial view. The second solenoid also carries a current I [A] and has a total of N turns. Assume both solenoids to be long (i.e., infinite for calculation purposes) and that the flux densities of the solenoids are in the same direction. Calculate the change in the energy in the system (made of the two solenoids) when the short solenoid is removed.

Figure 9.72
9.22

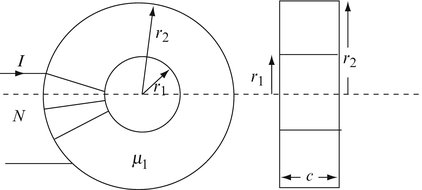

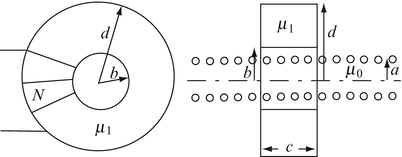

Change in Stored Energy Due to Change in Material properties. A toroidal coil of inner radius r ₁ [m], outer radius r ₂ [m], and square cross section is shown in Figure 9.73. The material of the torus has permeability μ ₁ > μ ₀, the coil has N turns and carries a current I [A]. Calculate the change in the stored magnetic energy if the material inside the torus is removed (the core of the torus is in effect replaced with free space).

Figure 9.73
9.23
Stored Energy in a Gap. A toroidal coil of inner radius r ₁ [m], outer radius r ₂ [m], and square cross section is given as shown in Figure 9.73. The material of the torus has permeability μ ₁ > μ ₀, the coil has N turns and carries a current I [A]. Calculate the change in the stored magnetic energy if a gap of length l _g [m] is cut in the torus. Assume the gap does not create flux leakage and the average radius is (r ₂ + r ₁)/2 [m].
9.24
Stored Energy in Series-Connected Inductors. Consider the torus and configuration given in Figure 9.64. For the given values and with N ₃ = 2N ₂ = 2N ₁ turns calculate:
1. (a)
  The total energy stored in the torus, if all three fluxes produced by the coils are in the same direction.
2. (b)
  Now, all three coils are connected in series to a current I [A] (I ₁ = I ₂ = I ₃ = I). It is required that the torus store the minimum possible energy. Show how the coils must be connected and calculate the energy stored and the equivalent inductance under this condition.
3. (c)
  The configuration now is as in (b), but it is required that the torus store maximum energy. Show how the connections must be made to accomplish this and calculate the stored energy and the equivalent inductance.
9.25
Application: Energy Stored in a Magnet. A cylindrical permanent magnet of radius a [m] with constant magnetization \( \mathbf{M}=\widehat{\mathbf{z}}{M}_0 \) [A/m] and infinite in length is given. Calculate the energy stored per unit volume of the magnet. Assume permeability of the magnet is μ ₀ [A/m].
9.26
Work Necessary to Modify a Magnetic Core. An infinitely long solenoid of radius a [m] has n turns per unit length. The turns carry a current I [A]. A long piece of iron of radius b [m] is located in the solenoid, as shown in Figure 9.74. The relative permeability of iron is μ _r and that of free space is μ ₀ [H/m]. Calculate the total work per unit length of the solenoid necessary to pull the iron completely out of the solenoid. Does this work increase or decrease the potential energy of the system? Explain.

Figure 9.74
9.27
Change in Energy Due to Change in Mutual Inductance. A square loop is located outside a very long solenoid with a total of N turns. Both the solenoid and the loop carry a current I [A] as shown in Figure 9.75A. Assume that the solenoid is d [m] long but that its field is identical to an infinite solenoid of the same radius. The loop is now inserted inside the solenoid such that the plane of the loop is perpendicular to the axis of the solenoid (Figure 9.75B). Calculate the change in energy in the system (loop inside solenoid) due to this action.

Figure 9.75

9.1.5 Magnetic Circuits

9.28
Application: Flux in a Toroidal Magnetic Circuit. A straight, long wire passes at the center of a torus as shown in Figure 9.76 and carries a current I [A]. The torus has permeability μ [H/m].
1. (a)
  Calculate the total flux in the torus due to the current in the wire.
2. (b)

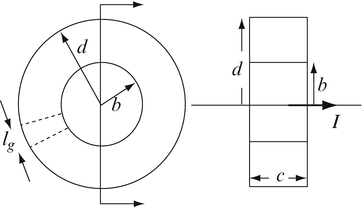

  What is the flux if a gap of length l _g [m] is cut in the torus (dotted lines)? Assume (d – b ) ≪ b.
Figure 9.76
9.29
Application: Magnetic Circuits. Calculation of Flux and Field Intensity. A magnetic circuit is given in Figure 9.77. A single turn of wire carrying a current I [A] is placed in the gap. Assume all flux is contained within the magnetic circuit and the magnetic path length is the average length of the corresponding section. Assume e > b and calculate:
1. (a)
  The minimum and maximum magnetic field intensity (H) in the circuit. Where do these occur?
2. (b)
  The flux in the central leg of the magnetic circuit.
Figure 9.77
9.30
Application: Mutual Inductance in a Magnetic Circuit. A torus with average radius r ₀ [m] and cross-sectional area as shown in Figure 9.78 is given. A coil with N turns is wound around the torus. A small gap of length l _g [m] is cut in the torus and a loop of radius a [m] is inserted in the gap, such that the loop is centered in the gap. Calculate the mutual inductance between the loop and the coil. Assume r ₀ ≫ b.

Figure 9.78
9.31
Magnetic Circuit with Different Materials. The magnetic circuit in Figure 9.79 is given. The two halves are made of different materials with different permeabilities. The length of the gap is l _g [m]. The cross-sectional area of the core is the same everywhere. Calculate the magnetic field intensity in the gap. Assume a ≫ l _g and d ≫ l _g.
Figure 9.79
9.32

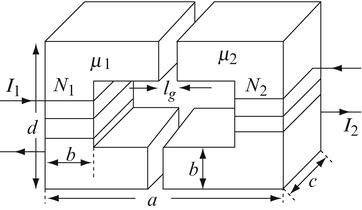

Magnetic Circuit with Different Materials. A torus is made of two types of materials with four small gaps as shown in Figure 9.80. Assume the gaps have properties of free space. The coil has N turns and carries a current I [A]. Calculate the flux density in the gaps assuming there is no flux leakage at the edges of the gaps.

Figure 9.80
9.33
Application: Stored Energy and Magnetic Flux Density in a Magnetic Circuit. The magnetic circuit in Figure 9.81 is given. The two halves are made of different materials with different permeabilities. The length of each gap is l _g [m]. The cross-sectional area of the core is constant. Take the magnetic path as the average length of the core:
1. (a)
  If I ₁ and I ₂ are known, calculate the total energy stored in the magnetic field.
2. (b)
  If I ₁ is known, calculate I ₂ such that the magnetic field intensity in the gap is zero. Show its direction.
Figure 9.81
9.34
Stored Energy in a Magnetic Device. The core shown in Figure 9.82 is made of two pieces. Two gaps exist between the two pieces as shown. The cross-sectional area of the two pieces is the same and is constant. The relative permeability of the upper and lower piece tends to infinity. Currents, number of turns, and dimensions are as shown. Calculate the total magnetic energy stored in the magnetic field of this device.

Figure 9.82
9.35

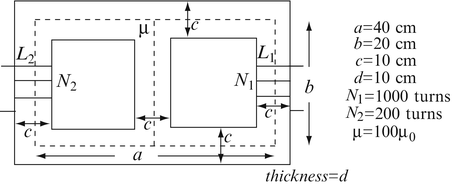

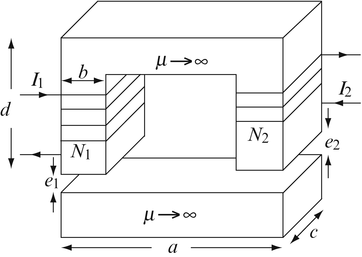

Mutual Inductance. An iron core is made as shown in Figure 9.83. A coil (L ₁) with N ₁ turns is wound on the right leg of the core and a coil (L ₂) with N ₂ turns is wound on the left leg of the core. Calculate the mutual inductance between the two coils.

Figure 9.83

9.1.6 Forces

9.36
Force on a Current-Carrying Conductor. A thin bar 1 m long carries a current I = 10 A. What is the maximum force that the terrestrial magnetic field exerts on the bar? Assume the magnetic field of the planet is parallel to the surface of the earth and equal to B = 50 μT. Show the required orientation of the bar so that the force is maximum.
9.37
Force on a Loop. A current I ₁ [A] flows in a thin conducting wire in the positive z direction. A rectangular loop carries a current I ₂ [A] as shown in Figure 9.84. Dimensions are as shown and the loop and wire are on a plane. Assuming free space, find:
1. (a)
  The total net force on the loop (magnitude and direction).
2. (b)
  The total net force on the wire (magnitude and direction).
Figure 9.84
9.38

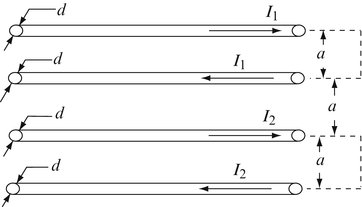

Forces on Thick, Current-Carrying Conductors. Two infinitely long conducting bars (shown in cross section in Figure 9.85) carry a current I [A] as shown.
1. (a)
  Write an expression for the force per unit length between the two conductors (do not evaluate the integrals).
2. (b)
  Is this an attraction or repulsion force? Explain.
3. (c)
  Optional: Integrate the expression in (a) for a = 0.05 m, d = 0.2 m, b = 0.2 m, I = 1,000 A, and μ = μ ₀. Note: The integral is very tedious. You may want to write a computer program to accomplish the integration.
Figure 9.85
9.39
Force Between Loops. Two square loops are parallel to each other and carry currents as shown in Figure 9.86.
1. (a)
  Show, without calculations, that the two loops attract each other.
2. (b)
  Write the expression for the total force on one of the loops.
3. (c)
  Optional: Evaluate the force in (b) for a = d = 1 m, b = 2 m, and I ₁ = I ₂ = 1 A.

  Figure 9.86
9.40

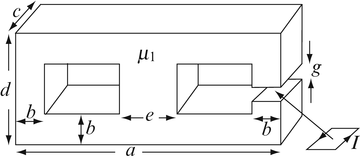

Forces in a Magnetic Circuit. A lifting electromagnet designed to lift steel bars is built as shown in Figure 9.87. To protect the poles, they are coated with a thin polymer of thickness t so that the minimum gap between the magnet and the bar being lifted equals t. Assuming the permeability of both the electromagnet core and the steel bar equal 200μ ₀, calculate:
1. (a)
  The weight per unit current in the coil that the device can hold.
2. (b)
  What is the current needed to hold a 1 ton bar.
Figure 9.87
9.41
Application: Forces on Magnetic Poles of a Gap. In Figure 9.88, calculate the force that exists between the two faces of the gap. The magnetic path has a permeability equal to μ [H/m] and the core is d [m] thick. a, b, and g are the average path lengths of the corresponding magnetic path sections.

Figure 9.88

9.1.7 Torque

9.42
Application: Torque on a Current-Carrying Loop. Calculate the torque on the loop in Figure 9.84. Assume the loop and wire are on a plane in free space.
9.43

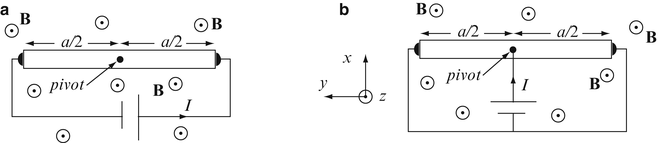

Torque on a Current-Carrying Bar. A thin bar of length a = 1 m carries a current I and is placed in a uniform magnetic field. The magnetic flux density is \( \widehat{\mathbf{B}}=\widehat{\mathbf{z}}{B}_0 \) where B ₀ = 0.4 T and the current in the bar is 0.1 A. The bar is pivoted at its center and connected to the current as shown in Figure 9.89a.
1. (a)
  Calculate the torque on the bar. Show the direction of forces.
2. (b)
  Suppose the source is connected as in Figure 9.89b. What is now the torque on the bar?
Figure 9.89
9.44
Application: Torque on Magnetic Dipoles. A loop of radius a [m] carries a current I [A]. A second, small loop of radius b [m] carries a current I _s [A] and is placed at point P ₁, P ₂, or P ₃ as shown in Figure 9.90. In all cases, h ≫ b, a ≫ b, h ≫ a, and the axes of the loops are parallel to each other. Calculate the torque:
1. (a)
  On the small loop when the small loop is at point P ₁.
2. (b)
  On the small loop when the small loop is at point P ₂.
3. (c)
  On the small loop when the small loop is at point P ₃.
4. (d)
  On the large loop for the configuration in (c).
Figure 9.90
9.45

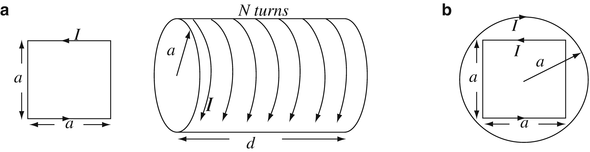

Torque on Small Loops. A small circular loop of radius a [m] is placed flat on a surface. A second, square loop, a × a [m²], is placed on the same surface at a distance d [m] such that d ≫ a (Figure 9.91a). The circular loop carries a current I _c [A] and the square loop a current I _s [A].
1. (a)
  Find the magnetic dipole moments of the circular and square loops in Figure 9.91a.
2. (b)
  Now, the square loop is rotated around its axis as in Figure 9.91b so that the side de is up without changing the directions of the currents. Calculate the torque on the round loop.
3. (c)
  Assuming the conditions in (b), the number of turns in the round loop is increased to N. How does this affect the torque on the square loop?
4. (d)
  Assuming the conditions in (c), the current in the round loop is changed to flow in the direction opposite that shown in Figure 9.91b and the number of turns in the square loop is also increased to N. Calculate the torque on the round loop.
Figure 9.91
