Geotechnical Properties of Sediments by In Situ Tests

Harbors management involves the execution of dredging operations to overcome excessive deposition of sediments in the harbor’s basin and channel accesses, ensuring proper navigability conditions. Sediment disposal management depends on the nature of the dredged materials, which generally comprises fine materials such as sand (particles dimensions in the range of 0.2 to 0.06 mm), silt (between 0.06 and 0.002 mm) and clay (below 0.002 mm). For that reason, a proper in situ geotechnical characterization of such sediments is necessary before a dredging operation. While the geotechnical behavior or sands and clays is relatively well understood with very well established assumptions (e.g., usually drained response and use of effective stress parameters for sand and, undrained response and undrained shear strength for clays), intermediate materials such as silts and various mixtures with sand and clay, that occur naturally and are frequently found worldwide, violate such assumptions. Behavior of intermediate soils (including sands with fines) can be transitional between sands and clays or can exhibit unique behavior that differs from both sands and clays. As a result, a given intermediate soil may simultaneously exhibit properties like a sand, while other properties may be more similar to a clay.

In particular, the extent to which penetrometer testing occurs under drained, undrained or intermediate conditions depends on the soil consolidation characteristics relative to the penetration rate and size of the penetrometer (Finnie and Randolph 1994). For that reason, a reliable evaluation of the mass permeability is a preliminary requirement for interpretation of piezocone (CPTU) tests (Randolph and Hope 2004; Schneider et al. 2007; Kim et al. 2008; DeJong and Randolph 2012; Mahmoodzadeh and Randolph 2014). As reported by Schnaid et al. (2004), for soils with permeability in the range of 10⁻⁵ to 10⁻⁸ m/s, the simplest accepted approach of a broad distinction between drained (gravel and sand) and undrained (clay) conditions cannot be applied to the interpretation of in situ tests without a great deal of uncertainty. Implications are that the cone resistance varies with penetration rate depending on whether the soil is contractive or dilatant as defined by the state parameter framework proposed by Jefferies and Been (Jefferies and Been 2006). As reported by DeJong and Krage (2014), if the soil has a large positive state (state > 0.20; signifying very loose conditions, i.e., contractive behaviour), in drained cone penetration, no excess pore pressure would develop, but the drained tip resistance would be relatively low since the soil is contractive. In undrained cone penetration large positive excess pore pressures would be generated, which reduces the effective stress in the soil, and hence reduces the cone tip resistance relative to the drained tip resistance (q_un < q_dr). If the state is highly negative (state < −0.20; dense conditions; i.e., dilatant behaviour) in drained cone penetration, this would again result in no development of excess pore pressures, but the magnitude of the drained tip resistance would be much higher than for the loose condition. In undrained cone penetration negative excess pore pressures would develop, increasing the effective stress, and making the undrained tip resistance higher than the drained tip resistance (q_un > q_dr).

This means that for the standard penetration rate, a partial drainage in a loose soil would result in lower estimation of the soil strength relative to a fully drained condition, and a higher estimation of the soil strength relative to a fully undrained condition. Consequently, for the soil layers identified by the Robertson (2009) unified approach as “sands”, the soil resistance generally evaluated by the angle of shearing resistance will be underestimated if partial draining conditions occur due to the presence of fines. On the contrary, for the soil layers identified as silts and clays, where the undrained strength would generally be used, an overestimation of this parameter will occur in partial draining conditions.

Discussion of this topic will be made in this paper for the specific case of CPTU tests in river sediments of a harbor site.

The study area is near the city center of Vila do Conde, in north Portugal, located in the left bank of Ave river where the new shipyards of Vila do Conde were installed. This area is very close to the river mouth as indicated in Fig. 1, which means that it suffers from the tidal influence. In fact, the tides in this region of the Atlantic coast are very wide frequently achieving a difference of 4 m of water height between the low and high tide. This had an important effect not only in the tests execution but also in the water table evaluation. Since the tests were performed on shore in an area that was only dry (and accessible) on the low tide the hour to perform the tests had to be judiciously chosen and there was no time for unexpected problems. Moreover, the water table depth, very useful in the interpretation of pore pressure measurements in CPTU tests, was not constant throughout the tests. It is possible that it can also vary from layer to layer depending on the soil permeability, as less permeable layers take more time to reduce the pore pressures when the tide falls.

Open image in new window

This area was chosen because it is a preferential area of sediment deposition, not only from Ave river but also from another small stream that converges to Ave river in this specific point. Unfortunately, it is not possible to see it in Fig. 1 because part of this stream is piped. On the other hand, this area was also a deposition place of dredged sediments from Ave river in the past due to the current need of assuring river navigability.

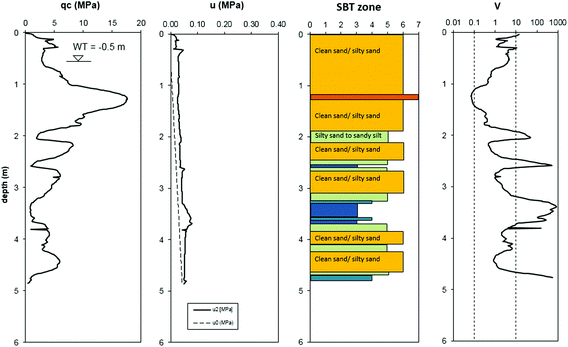

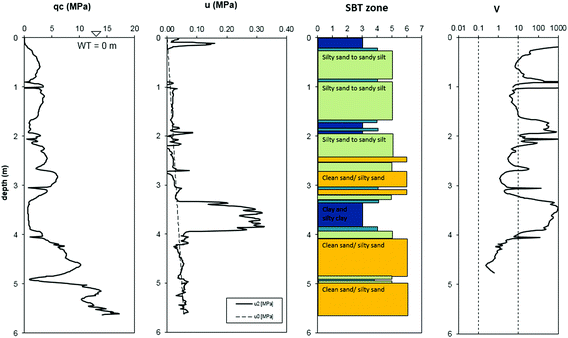

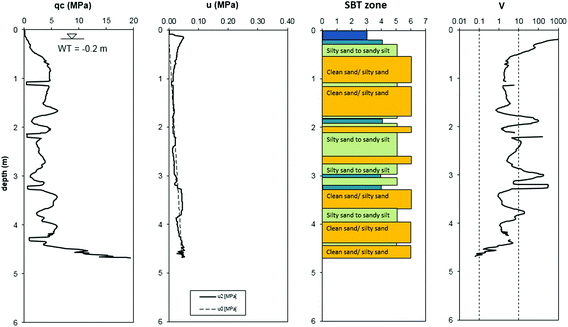

At this site three points were selected (Fig. 2), providing that they were all accessible in the low tide. In these points cone penetrometer tests (CPTU) were performed. The test procedure included first the execution of the light dynamic probing, followed by CPTU test until a maximum tip resistance (qc) of 20 MPa was obtained since the aim was only to study the loosest layers of sediments. At the maximum depth, dissipation tests were performed but without success as the pore pressure remained constant. It can be argue that dissipation tests could have been performed at the higher excess pore pressure but since the water table was quite difficult to evaluate, it was even more difficult to know the best depth to perform dissipation tests. After removing the cone penetrometer, the water table depth was measured in the hole left by the cone, which was used in the interpretation of CPTU tests although it does not adjusts to the data as it will be shown below. A simple auger was also used to extract some undisturbed samples for future analysis that are out of the scope of this paper. Notwithstanding, it is worth mentioning that by visual inspection the soil is mainly composed by sand with fines and in some parts the sand becomes darker with more cohesion as an indication that the amount of clay/silt particles increases.

Open image in new window

For the CPTU tests, a standard cone was used with a cone area of 10 cm², a penetrometer diameter of 3.57 cm and a cone area ratio (a) of 0.58. The tests were performed at the standard rate of 2 cm/s.

The tests were interpreted by the unified approach proposed by Robertson (2009) from the basic CPTU parameters (q_c, f_s and u₂). However, the main expressions used to obtain some of the parameters will be identified here since there are several correlations proposed by different authors for the same parameter.

\( \alpha_{M} = Q_{tn} \) when \( Q_{tn} \le 14 \)

\( \alpha_{M} = 14 \) when \( Q_{tn} > 14 \)

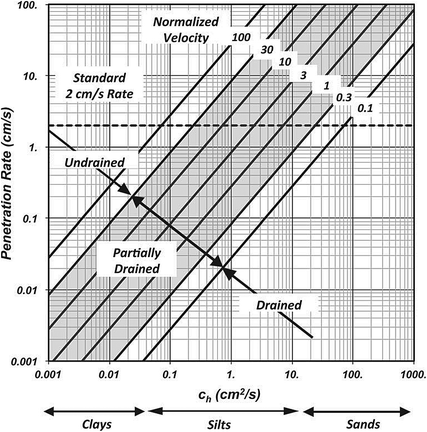

This enabled the calculation of the normalized velocity (V) as proposed by Randolph and Hope (2004) and DeJong et al. (2013), by expression (5) and Fig. 3.

Open image in new window

$$ V = \frac{v * d}{{c_{h} }} $$

(5)

where,

• v is the cone penetration rate (in this case is the standard v = 2 cm/s)

• d is the penetrometer diameter (is this case d = 3.57 cm)

Note that according to Fig. 3, a standard rate of 2 cm/s induces partial drainage conditions from fine sands through most silts.

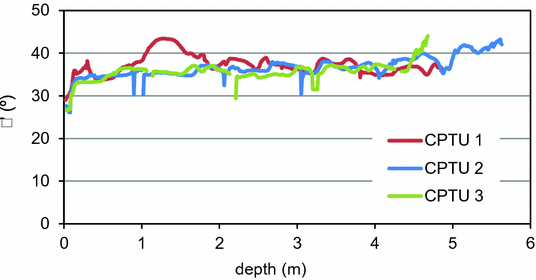

This paper presents results from CPTU tests performed in a river area influenced by the tides and dredging operations. The main purpose was to evaluate the suitability of CPTU tests to evaluate the permeability and strength properties of river sediments composed mainly by intermediate materials between clay and sand. The normalized velocity proposed by Randolph and Hope (2004) showed that this is actually the case for the soil presented in this paper, since normalized values between 1 and 10 were found in a great part of the analyzed profiles, indicating partial draining conditions. Although laboratory tests are needed to verify the soil hydraulic and mechanical properties obtained in situ, it is possible that the obtained angle of shearing resistance between 35° and 40° is a safe estimation of the effective strength of this soil.
