Abstract

The chapter is organised as follows. First, the disagreement in the b-tagged fraction observed in the previous chapter is investigated; a correction to the simulation is applied to fix the disagreement. Then, the b-jet and n-jet cross sections are simultaneously extracted together with advanced techniques of unfolding; the treatment of the systematic uncertainties in the unfolding is also discussed.

This is a preview of subscription content, to check access.

Supplementary material

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

Open image in new window

8.3 Details About Fit of Purity

In this appendix, we describe step by step the determination of the purity. First, we show the templates. Then we investigate the different ways to constrain charm in the CSVv2-tagged region; we compare pythia 8 and MadGraph. After, in order to justify our approach in the non-CSVv2-tagged region, we show that the fit is not stable.

8.3.1 Templates

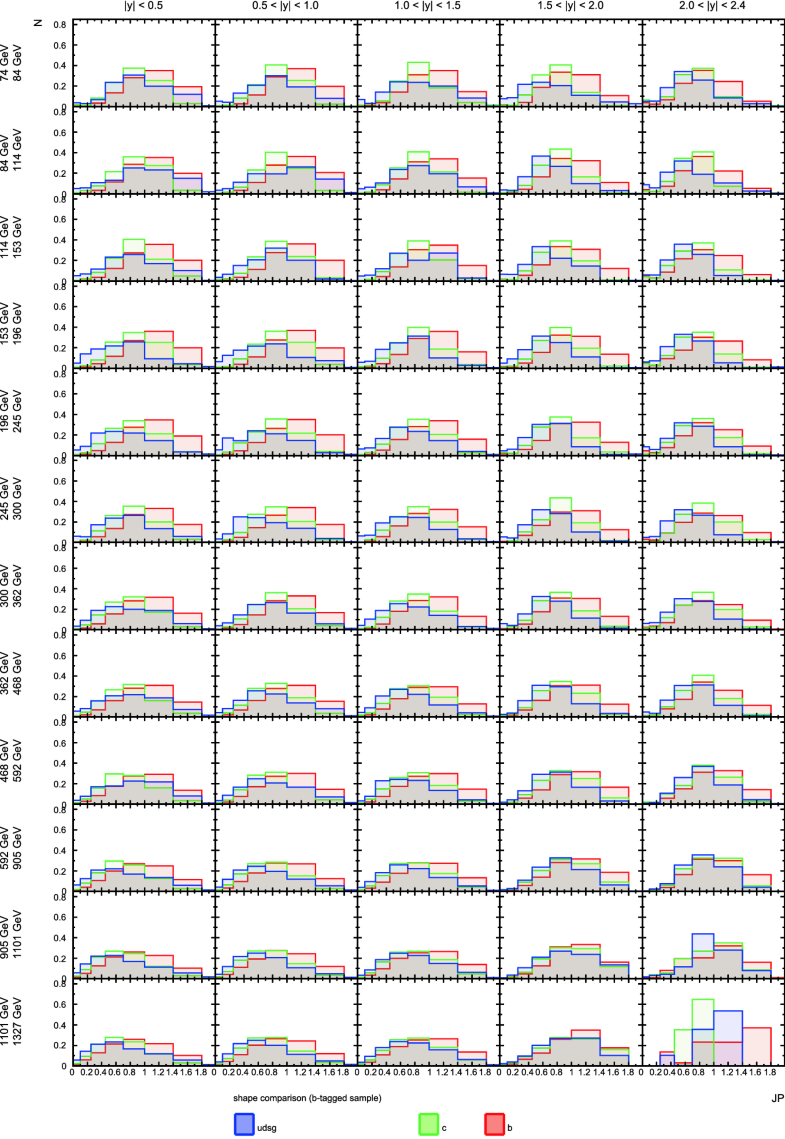

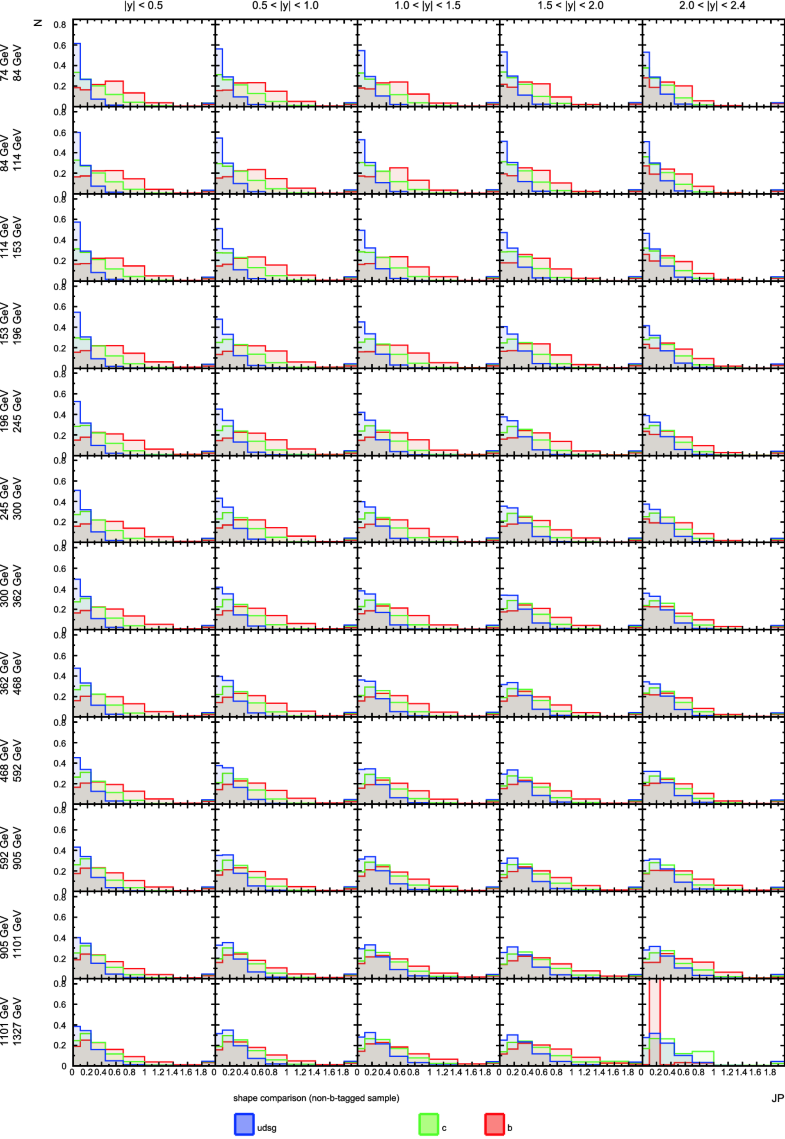

In the discussion conducted in Sect. 8.1, the templates were sketched in Fig. 8.2; the templates in the CSVv2-tagged (non-CSVv2-tagged) region are shown in Fig. 8.13 (Fig. 8.14) in bins of $p_T$ and y. For readability, the statistical errors are not shown; however, they become larger and larger for increasing JP values.

Tagged region. In the CSVv2-tagged region, the different templates are peaked at different values for the different flavours; however, the peak are less and less distinct while going to higher $p_T$ and higher y; one also observes that the c templates lie halfway between the light and b templates.

Non-tagged region. On the other hand, in the non-CSVv2-tagged region, if the templates look different at low $p_T$, they very similar at high $p_T$. Moreover, the light component has a roughly 50 times larger statistics.

8.3.2 Determination of the Purity in the CSVv2-Tagged Region

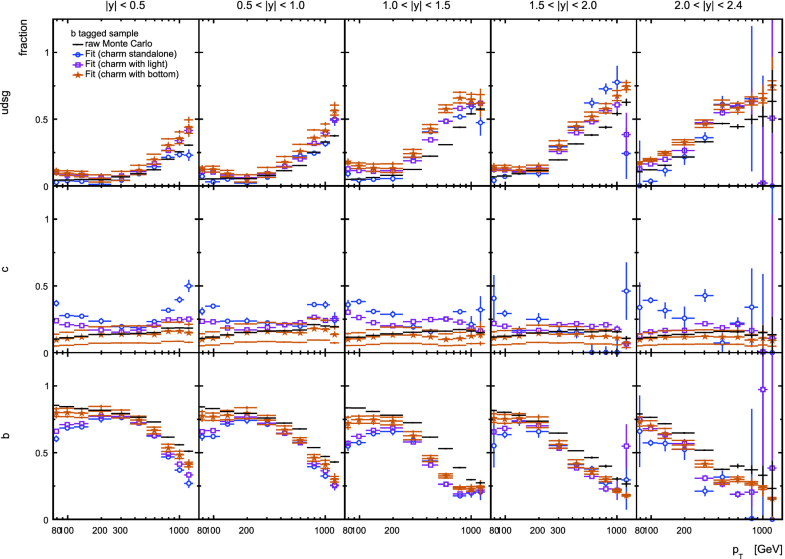

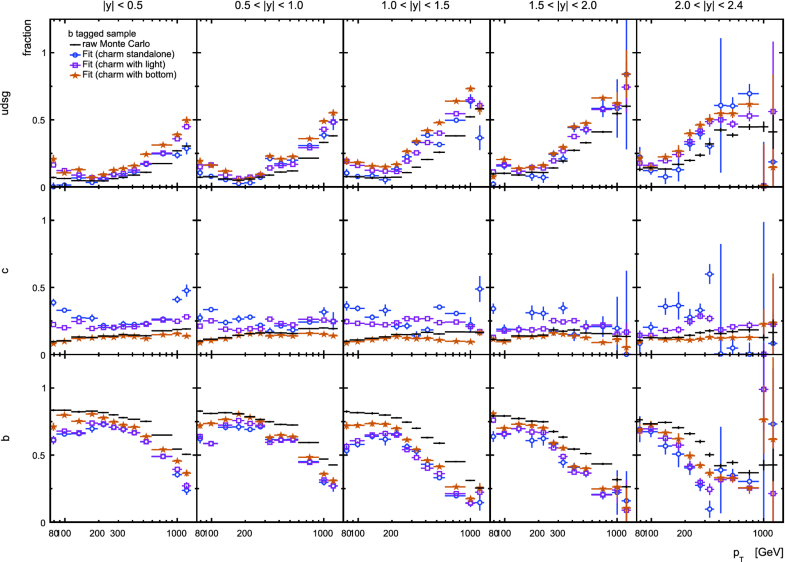

In Figs. 8.15 and 8.16, the fit is investigated for different ways to constrain the c component with the pythia 8 and MadGraphsamples:

as an independent component, i.e. just as in Eq. 8.5 (corresponding to the blue circles);
together with the light component, i.e. $N_\text {data}^\text {total} = p_\text {udsg+c} (N_\text {MC}^\text {udsg} + N_\text {MC}^\text {c}) + p_\text {b} N_\text {MC}^\text {b}$ (corresponding to the purple squares)
or together with the bottom component, i.e. $N_\text {data}^\text {total} = p_\text {udsg} N_\text {MC}^\text {udsg} + p_\text {b+c} ( N_\text {MC}^\text {c} + N_\text {MC}^\text {b})$ (corresponding to the orange stars).

In all cases, the configuration where charm is constrained with bottom seems optimal, since at low $p_T$, the correction is expected to be minimal (the disagreement in the fraction ratio mainly happens at high $p_T$). The findings were also confirmed using cMVAv2 (not shown here); the result was however of lower quality because the correlation of cMVAv2 with JP is greater.

The ratios of the JP discriminant in bins of $p_T$ and y is shown before (after) the fit in Fig. 8.17 (Fig. 8.18).

8.3.3 Determination of the Purity in the Non-CSVv2-Tagged Region

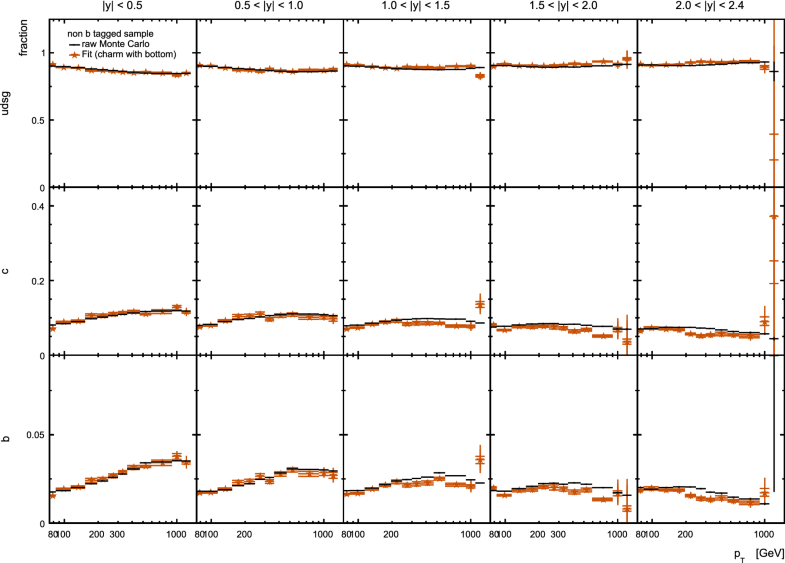

In the non-CSVv2-tagged region, the difference of statistics of the contributions from lights and from HF components. The attempt of fit with a similar approach as in the CSVv2-tagged region (in the previous subsection) is shown in Fig. 8.19; only the case of b and c constrained together converged (in almost all bins, except at low $p_T$ in the central region, the different attempts of fit systematically returned NaN), therefore it is the only one that can be shown here. This failure justifies the solution mentioned in Sect. 8.1, where the renormalisation factor of the $b+c$ component is propagated from the CSVv2-tagged to the non-CSVv2-tagged region, and the light component is only rescaled to match the data; the result of this procedure, with the different charm constraints, is shown in Fig. 8.20.

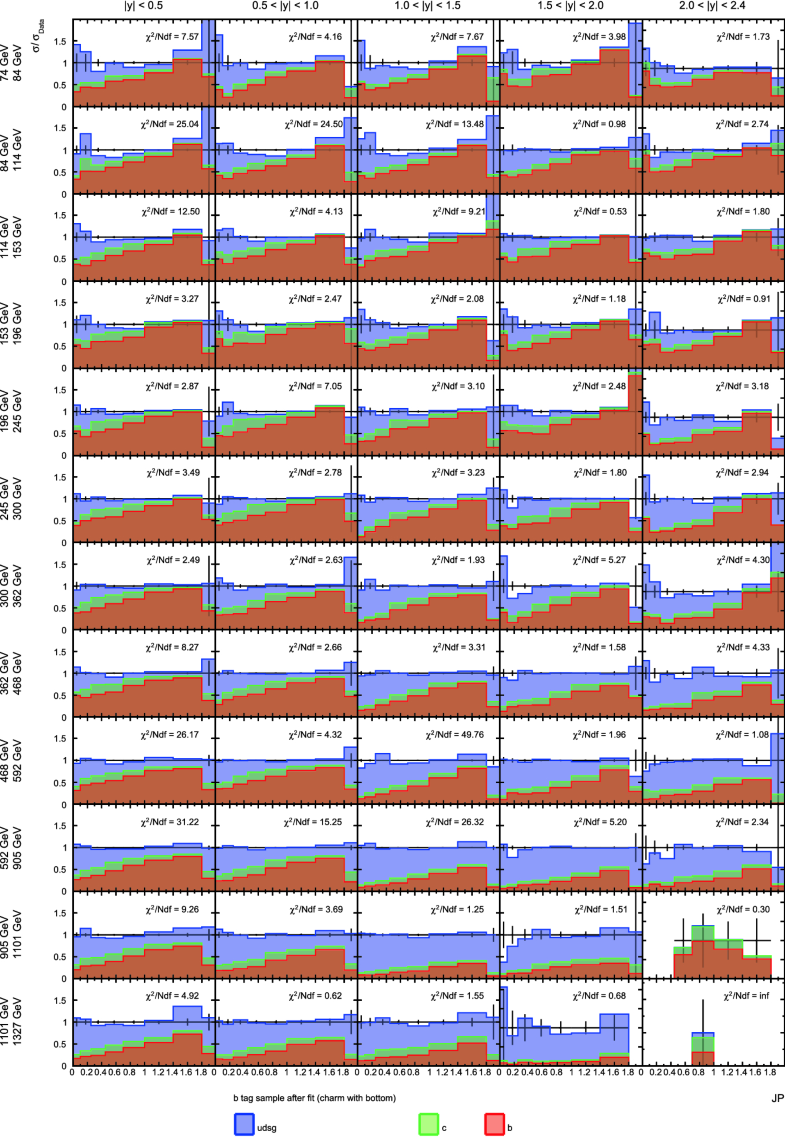

The ratios of the JP discriminant in bins of $p_T$ and y is shown before (after) the fit in Fig. 8.21 (Fig. 8.22).

8.4 Details About Unfolding Procedure

We give additional details in the procedure of unfolding.

First we show the regularisation matrix obtained from pythia 8. Then we discuss the treatment of the statistical uncertainties. Finally, we present additional checks.

8.4.1 Control Plots for Tikhonov Regularisation

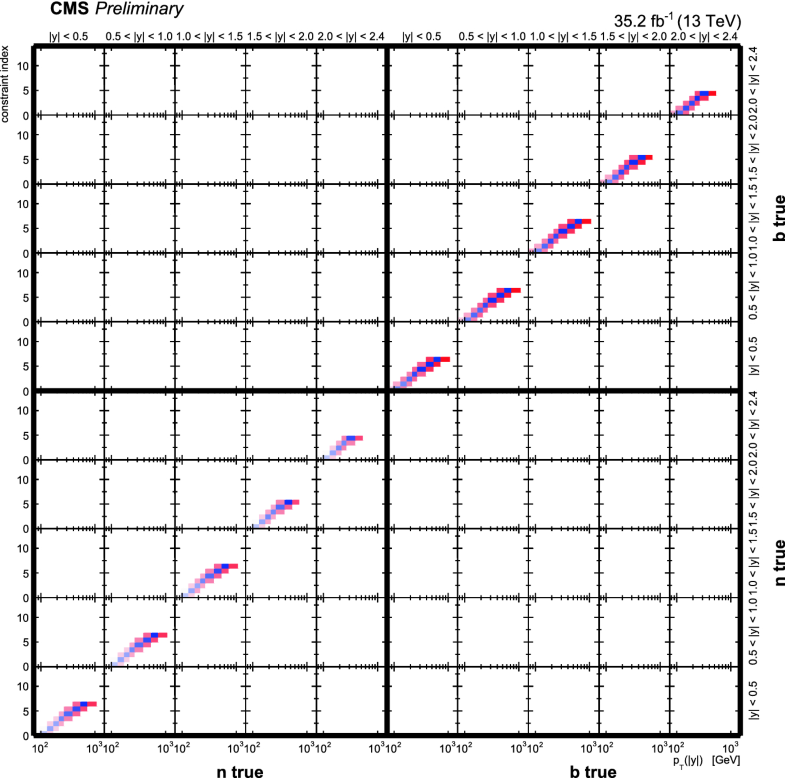

The $\mathbf {L}$ matrix obtained with the pythia 8 sample after model reweighting may be seen on Fig. 8.23: since only the $p_T$ is regularised, only the diagonal of the rapidity cells are filled; the constraint index corresponds to the row index in Eq. 8.14, i.e. to a constraint on three consecutive bins at particle level. The $\mathbf {L}$ matrix is therefore not a square matrix.

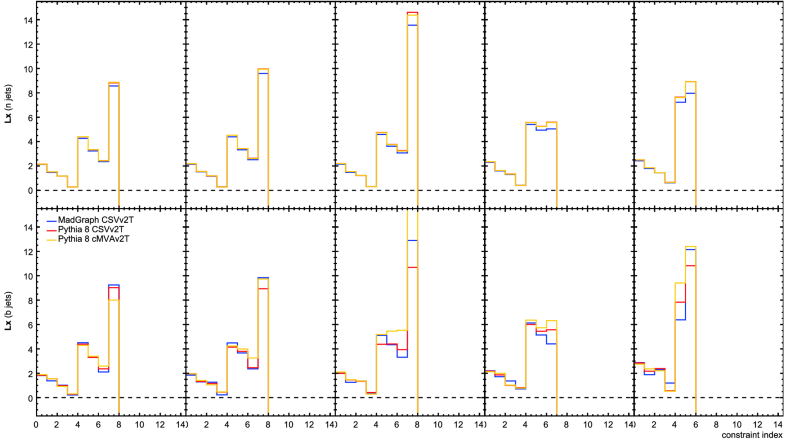

The effect of the regularisation on the unfolded spectra can be checked with the product $\mathbf {L} \mathbf {x}$ (second term in Eq. 8.11). The product is shown in the three different scenarios in Fig. 8.24. One sees explicitly which bins need the more regularisation: at high $p_T$, especially in the third rapidity bin.

8.4.2 Treatment of Statistical Uncertainties

The statistical uncertainty from the MC (via the RM) and from the data (from the measurement) is considered; the former is included as an additional uncertainty in the unfolding procedure, the latter is part of the unfolded result.

The covariance matrix in data at particle level is given by the following:

$$\begin{aligned} \mathbf {V_x}&= \mathbf {B}^\intercal \mathbf {V_y}^{-1} \mathbf {B}^\intercal \end{aligned}$$

(8.20)

where $\mathbf {B}$, which operates the transformation, is defined as follows:

$$\begin{aligned} \mathbf {B}&= \mathbf {E} \mathbf {A}^\intercal \mathbf {V_y}^{-1} \end{aligned}$$

(8.21)

with

$$\begin{aligned} \mathbf {E}&= \left( \mathbf {A}^\intercal \mathbf {V_y}^{-1} \mathbf {A} + \tau ^2 \mathbf {L}^\intercal \mathbf {L} \right) ^{-1} \end{aligned}$$

(8.22)

In the case of no regularisation ($\tau = 0$), the transformation simplifies to $\mathbf {B} = \mathbf {A}^{-1}$, as expected for matrix inversion.

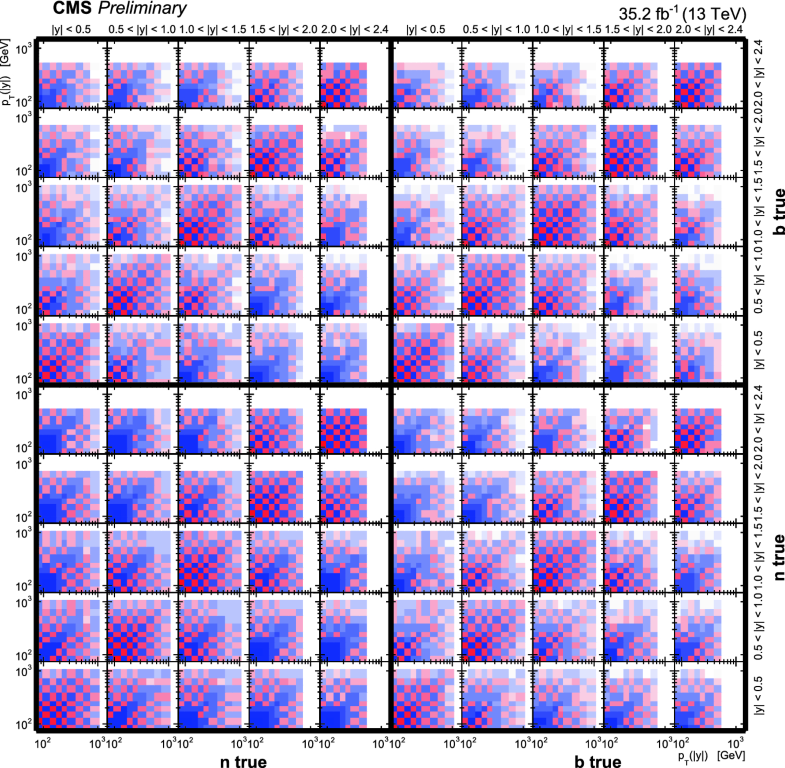

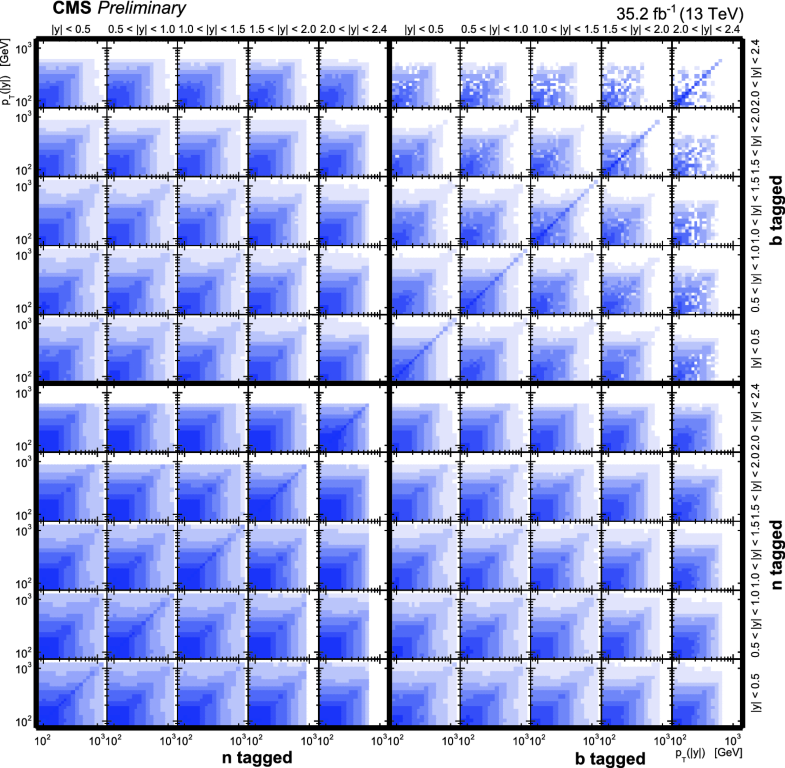

The covariance matrix before (after) unfolding can be seen on Fig. 8.25 (Fig. 8.26). The input covariance matrix contains only positive entries; off-diagonal events corresponds to correlations among jets coming from the same events. A single-count observable would show purely diagonal covariance matrices; here, since we are measuring a multi-count observable, there are significant non-diagonal contributions, which matter in the unfolding (see Eq. 8.10). The output covariance matrix contains negative entries (which translates into this chess-pattern); indeed, close bins are constrained together and are therefore correlated.

8.4.3 Additional Checks

We present here some additional checks to certify the unfolding. We compare systematically the result of the unfolding obtained with the D’Agostini and Tikhonov regularisations.

8.4.3.1 Backfolding

The backfolding consists in applying the PM on the particle-level spectrum

$$\begin{aligned} \mathbf {y'} = \mathbf {A} \mathbf {x} \end{aligned}$$

(8.23)

The backfolded spectrum $\mathbf {y'}$ can be compared with the measurement $\mathbf {y}$. The difference is expected be of the order of the statistical fluctuations; however, since the backfolded spectrum still keeps track of the regularisation (either from the MC prior with D’Agostini or from the $\mathbf {L}$ matrix with Tikhonov), therefore fluctuations are expectable.

The backfolding after the two algorithms is shown in Fig. 8.27. The curves are compatible with the statistical uncertainties, both for $\hat{n}$ (above) and $\hat{b}$ jets (below). The remaining fluctuations are similar for the two backfolded spectra (with the different algorithms) and for the simulation, and give an estimate of the effect of the regularisation.

8.4.3.2 $\chi ^2$ of Agreement

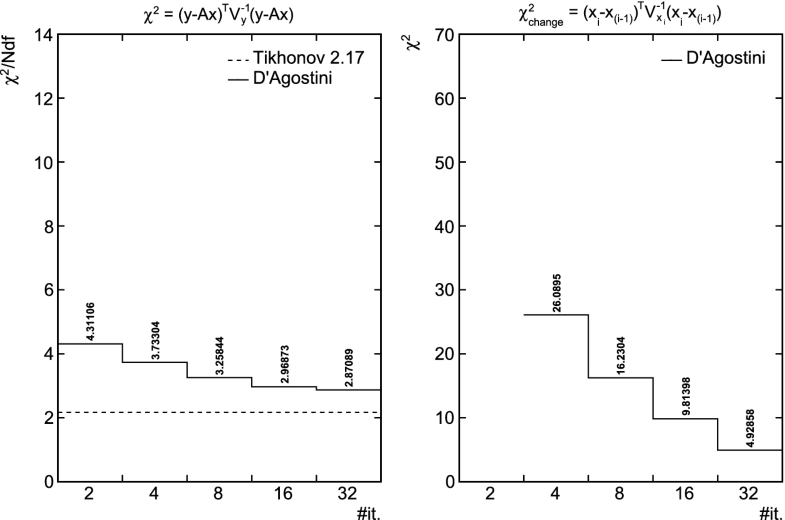

The $\chi ^2$ of agreement is defined in Eq. 8.10. It is shown on the left hand side of Fig. 8.28 for the different iterations and for the unfolding obtained with Tikhonov. One observes the converge to the D’Agostini unfolding to a value close to the one of Tikhonov.

8.4.3.3 $\chi ^2$ of Change

The $\chi ^2$ of change is defined as follows:

$$\begin{aligned} \chi ^2&= (\mathbf {x}_i - \mathbf {x}_{i-1})^\intercal \mathbf {V}^{-1} (\mathbf {x}_i - \mathbf {x}_{i-1}) \end{aligned}$$

(8.24)

where i denotes the iteration. It is shown on the right hand side of Fig. 8.28, where it is given for the change $2^i$ to $2^{i+1}$ iterations. The change is smaller and smaller, indicating the convergence.

8.4.3.4 Bottom Line Test

In the Bottom Line Test (BLT), we compare the agreement of simulation and data before unfolding, after unfolding and after backfolding by computing the following $\chi ^2$:

$$\begin{aligned} \chi ^2_\text {BLT}&= \left( \mathbf {z}_\text {data} - \mathbf {z}_\text {MC} \right) ^\intercal \mathbf {V}^{-1}_\text {data} \left( \mathbf {z}_\text {data} - \mathbf {z}_\text {MC} \right) \end{aligned}$$

(8.25)

where $\mathbf {z}=\mathbf {y}$ (before) or $\mathbf {z}=\mathbf {x}$ (after) with respective data covariance matrix. One compares the values in the Tikhonov algorithm and for different number of iterations in the D’Agostini algorithm. If the unfolding is correctly performed, i.e. if only the effect of the detector is treated, then one does not expect the agreement to change significantly at the different levels.

The test performed with the pythia 8 sample can be seen in Fig. 8.29, where the value of Eq. 8.25 are shown for the different number of iterations of the D’Agostini unfolding in the bins and with a single line for the Tikhonov unfolding:

The BLT of the unfolding is shown on the left hand side of the figure. The higher number of iterations does not improve the global agreement of the result obtained with the D’Agostini algorithm. Moreover, the result obtained from D’Agostini has larger uncertainties, and therefore leads to a lower $\chi ^2_\text {BLT}$ than with the Tikhonov algorithm.
The BLT of the backfolding is shown on the right hand side of the figure. In contrast to the BLT at particle level, the $\chi ^2_\text {BLT}$ takes different values for D’Agostini, which is likely related to the treatment of the uncertainties. However, it goes to values of the same order as the result obtained with the Tikhonov algorithm and as the measurement. The fact the backfolding after Tikhonov algorithm has a lower $\chi ^2_\text {BLT}$ than the measurement is explained by the regularisation; indeed, the backfolded spectrum is still regularised, with respect to the measurement.
